| Place of Origin: | China |
| Price: | $25.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | EPE,carton,plywood case or pallet |
| Delivery Time: | 15-30 Days | Grade: | 1000 Series |
|---|---|---|---|
| Temper: | T3-T8 | Shape: | Flexible |
| Tolerance: | GB/T 3190-2008,GB/T 14846-2008,ISO 2768 | Processing Service: | Bending, Decoiling, Welding, Punching, Cutting, CNC Machining |
| Fins Thickness: | 1mm | Pitch: | 4mm |
| Base Thickness: | 8mm | ||
| High Light: | Inverter AL Heat Sink,AC Driver AL Heat Sink,Multipurpose Heat Sink In Power Electronics |
||

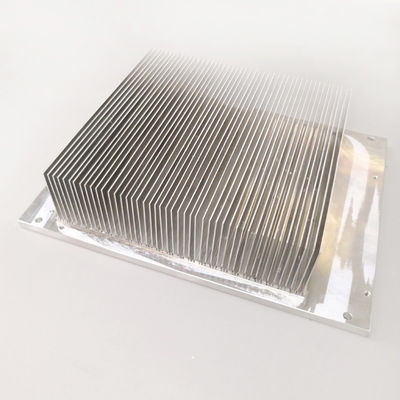

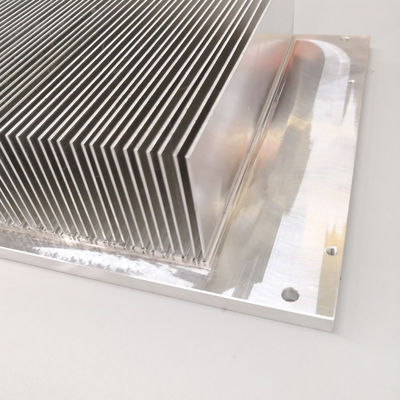

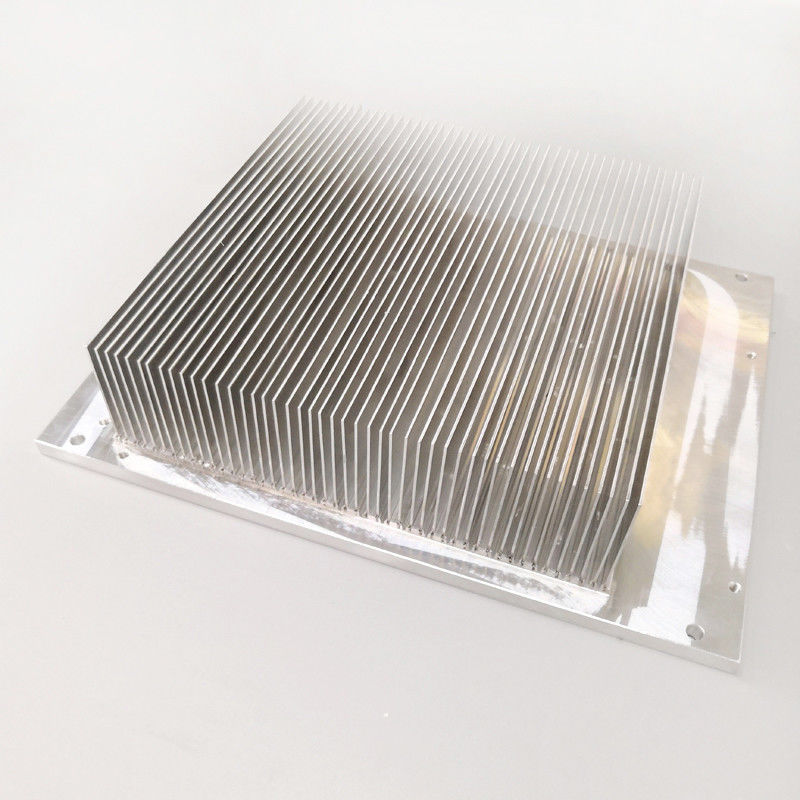

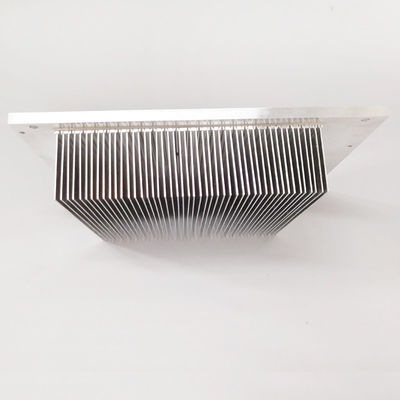

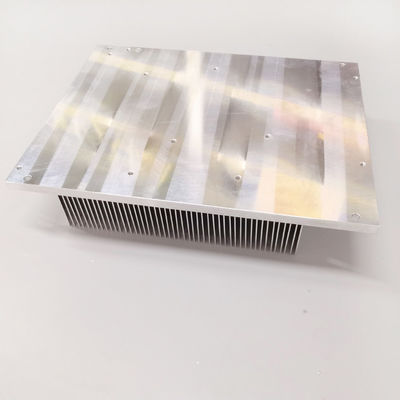

Bonded fin heat sink for high power device Inverter AC driver VFD heat sink 260(W)*58(H)*200(L)mm
|
Product Name
|
Custom aluminum heat sink 260(W)*58(H)*200(L)mm
|
|
Material
|
AL 6063 T5;AL 1060
|
|
Detailed Size
|
As per customers' design,max width 1000mm,max height 200mm,min gap 1mm
|
|
Advantage
|
Flexible pitch, height and width,manufactured without molds;smaller volume and lightweight,an ideal selection for cooling high power devices
|
|
Sample Service
|
Samples with differernt sizes can be availabe for prototypes test within 1 week
|
|
Production Process
|
Aluminum plate cutting---Making the solts in the base---Fins cutting--Bonding fins to base---CNC Machining---Deburring--- Cleaning--- Inspecting--Packing
|
|
Surface Treatment
|
Degreasing,(Black) Anodizing,Sand Blasting,Painting,Chromating and Laser marking
|
|
Reference Standard
|
GB/T 3190-2008,GB/T 14846-2008,ISO 2768
|
|
Experience
|
More than 20 years professional manufacturing experience
|
|
|
LED Lighting,Inverter,Welding Machine,Communication Device,Power Supply Equipment,Electronic Industry,Thermoelectric Coolers/Generator,IGBT/UPS Cooling Systems,etc.
|
Introduction:
Electronic heat sinks can come in various shapes and sizes, depending on the specific application requirements. They can be passive or active, with passive heat sinks relying on natural convection to dissipate heat and active heat sinks using fans or other cooling methods to increase airflow and improve cooling.
Advantages:
The advantage of a water cooling heatsink is its superior thermal performance. Water has a much higher thermal conductivity than air, which means it can absorb heat more efficiently and transfer it away from the heat source. This allows for more effective cooling of high-power electronics and other heat-generating components.
Application:
Robotics: Electronic heat sinks are used in robotics applications such as motor drives, servo controllers, and sensors.
LED lighting: Electronic heat sinks are used in LED lighting systems to dissipate the heat generated by high-power LED chips. This helps to improve the lifespan and performance of the lighting system.
A: High heatsink surface;Good aerodynamics;Good thermal transfer within the heatsink;Perfect flatness of the contact area;Good mounting method.
A: Generally it is 5-10 days if the heatsinks are in stock. or it is 30-40 days for mass production
A: Yes, we could offer paid sample for prototypes testing if there is stock.we have thousands of standard heatsinks with different sizes and shapes.
A: Usually 100% payment before shipment.For regular customers,the terms can be nogotiated.
If you have any other question, please feel free to contact us
