| Place of Origin: | China |
| Price: | $11.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | EPE,carton,plywood case or pallet |
| Delivery Time: | 15-30 Days | Grade: | 1000 Series |
|---|---|---|---|
| Temper: | T3-T8 | Application: | Heat Sink |
| Shape: | Rectangle | Alloy Or Not: | Is Alloy |
| Tolerance: | GB/T 3190-2008,GB/T 14846-2008,ISO 2768 | Processing Service: | Bending, Decoiling, Welding, Punching, Cutting, CNC Machining |
| Fins Thickness: | 0.8/1/1.2/1.5/2mm | Baseplate Thickness: | 8/10/12/15/18/20/25 Mm |
| Pitch: | 2/3/4/5/6 Mm | ||
| High Light: | Welding Machine Electronic Heat Sink,200MM Electronic Heat Sink,100MM Heat Sink Inverter |
||

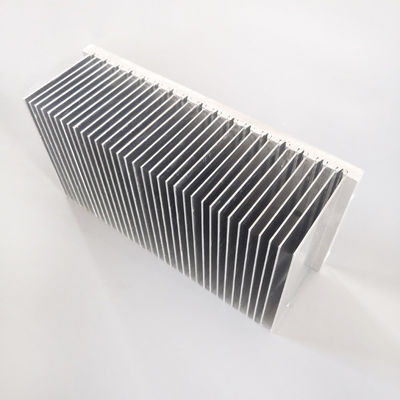

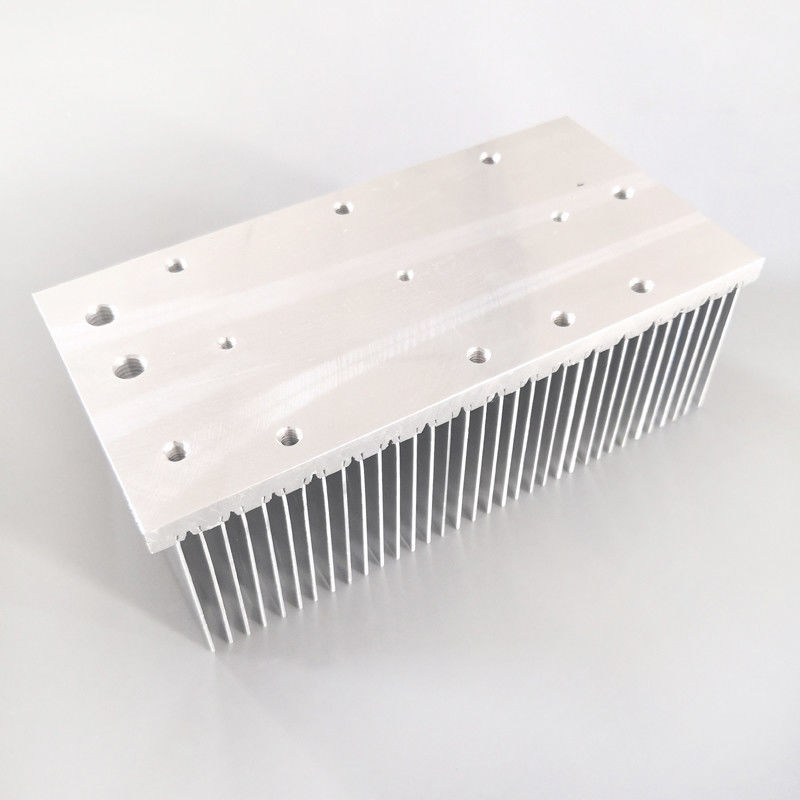

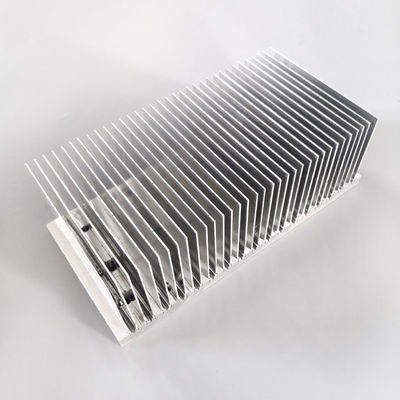

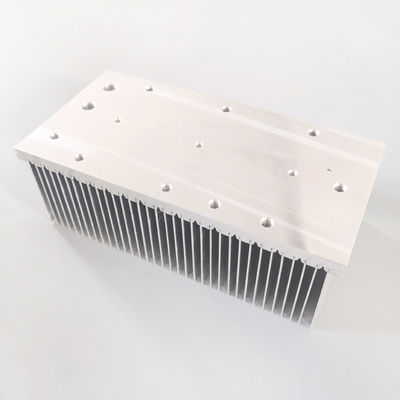

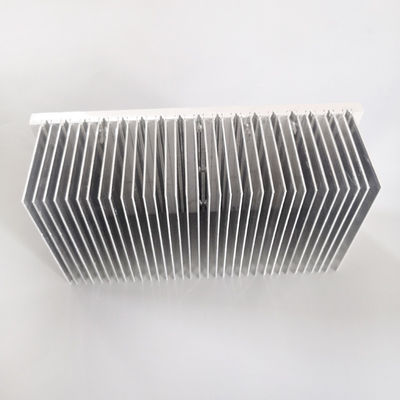

Welding machine inverter heat sink Custom bonded fin heat sink 200(W)*66(H)*100(L)mm
|
Product Name
|
Custom aluminum heatsink 200(W)*66(H)*100(L)mm
|
|
Material
|
AL 6063 T5;AL 1100
|
|
Detailed Size
|
As per customers' design,max width 1000mm,max height 200mm,min gap 1mm
|
|
Advantage
|
Flexible pitch, height and width,manufactured without molds;smaller volume and lightweight,an ideal selection for cooling high power devices
|
|
Sample Service
|
Samples with differernt sizes can be availabe for prototypes test within 1 week
|
|
Production Process
|
Aluminum plate cutting---Making the solts in the base---Fins cutting--Bonding fins to base---CNC Machining---Deburring--- Cleaning--- Inspecting--Packing
|
|
Surface Treatment
|
Degreasing,(Black) Anodizing,Sand Blasting,Painting,Chromating and Laser marking
|
|
Reference Standard
|
GB/T 3190-2008,GB/T 14846-2008,ISO 2768
|
|
Experience
|
More than 20 years professional manufacturing experience
|
|
|
LED Lighting,Inverter,Welding Machine,Communication Device,Power Supply Equipment,Electronic Industry,Thermoelectric Coolers/Generator,IGBT/UPS Cooling Systems,etc.
|
Introduction:
Mounting: Electronic heat sinks are typically mounted directly onto the electronic component using thermal interface material, such as thermal paste or tape, to improve thermal contact and heat transfer. Screws or other fasteners may also be used to secure the heat sink in place.
Active vs. passive: Electronic heat sinks can be passive, relying on natural convection to dissipate heat, or active, using fans or other cooling methods to increase airflow and improve cooling efficiency. Active heat sinks are typically more effective at cooling high-power electronics, but they can be louder and more complex to install than passive heat sinks.
Advantages:
A water cooling heatsink is a type of heat sink that uses water as a cooling medium instead of air. It typically consists of a metal base, such as copper or aluminum, with channels or tubes running through it that allow water to flow through. The water absorbs heat from the heat source, such as a CPU or graphics card, and then is circulated away from the heatsink to a radiator, where the heat is dissipated into the surrounding environment.
Another advantage of a water cooling heatsink is its flexibility. The water can be circulated through the heatsink using a pump, which allows for precise temperature control and can improve the overall performance of the cooling system. Additionally, water cooling heatsinks can be customized to fit specific components or systems, which can lead to improved performance and efficiency.
Application:
Industrial applications: Electronic heat sinks are used in industrial applications such as power supplies, motor drives, and control systems.
LED lighting: Electronic heat sinks are used in LED lighting systems to dissipate the heat generated by high-power LED chips. This helps to improve the lifespan and performance of the lighting system.
Medical devices: Electronic heat sinks are used in medical devices such as surgical instruments, imaging equipment, and patient monitors.
A: High heatsink surface;Good aerodynamics;Good thermal transfer within the heatsink;Perfect flatness of the contact area;Good mounting method.
A: Generally it is 5-10 days if the heatsinks are in stock. or it is 30-40 days for mass production
A: Yes, we could offer paid sample for prototypes testing if there is stock.we have thousands of standard heatsinks with different sizes and shapes.
A: Usually 100% payment before shipment.For regular customers,the terms can be nogotiated.
If you have any other question, please feel free to contact us.
